	Technical
	LINAK LIFTER \|WINDSCREEN WIPERS \| AIR VENTS \| REMOTE CONTROL \| Engine Codes \| Wiring Diag. \| SEAT BELT
	Items of a Technical nature, related to the EUREKA & associated vehicles will be placed here.	Submissions of any article of interest would be appreciated. For example, that glitch you finally worked out, or an alternative component you discovered. If you found it interesting, please share it with your fellow members. Send to webmaster@eurekacarclub.com.au Submissions can be anonymous if requested
	ADOBE ACROBAT READER 4 or ABOVE IS REQUIRED Click here to go to Adobe for the FREE download

	*AIR VENTS* (UP-DATED Feb 08)	Flexible Drive Agencies.They have outlets in most States. They sell the eyeball type vent like the MX-5 ones, but with closeable vents. The part number is 061405 A PDF catalogue is here		Flexible Drive Agencies Web Site www.flexibledrive.com.au/

	*REMOTE CONTROLS*

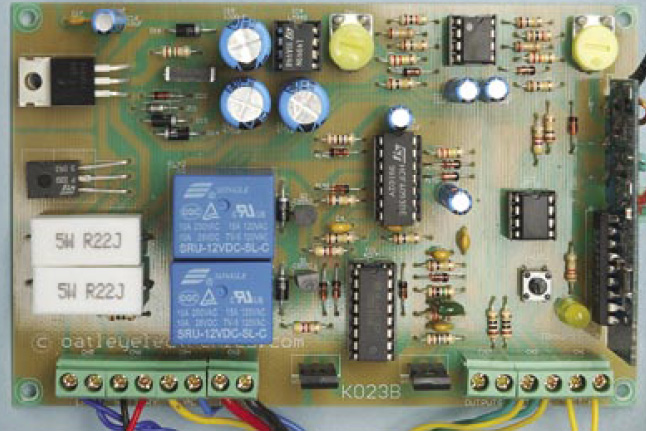

		This is some info on a REMOTE CONTROL which has been successfully installed in a few Reeks around the country with good success. This particular one is actually a Garage Door Opener with four channels. It comes in KIT form with some optional extras, (its recommended to order all options)		It can be purchased on the Net at www.oatleyelectronics.com . The Kit you are looking for is the K023c, found here http://oatleyelectronics.com//product_info. All the details & instructions can be downloaded from the site. But a copy can be accessed here

	Windscreen Wipers
	Australia	Speedscreen	or Tryco
	Australian Agent www.flexibledrive.com.au/	Motor (new p/no 2302013) Kit 6271240 Arm 6211140 Arm 621124 Kit kt48519	P/graph 24" 5218840 Blade 20" 5217240 P/graph 26" 6700066 Blade 61051 Louver


	USA	The motor can be supplied as a "unitized" version which comes with the required pantograph bits and pieces.
	Information source by Matt, thanks Phil (Lama) for bringing it to our attention.
	Made by AM Equipment and are called " 230 series" units. The web site is www.amequipment.com USA	*Motor* - " 230 series left hand" (12v, coast to park) Part # 230J652 (just motor)	*Arm* - " Pantograph arm, dry". (26"/ 660mm length, 1.25" bridge width) Part # 301-1260 Blade - "230 series flex blade". (19"/ 480mm length) Part # 302-1190
	Click on the pics below for a "pdf" specification

	*LINAK LIFTERS*	Thanks to SCOTT for this Wiring diagram & detail click here to view	Its a 3 page "PDF" document (@ 1mb) & depending on your speed available it could take a minute or two to download ADOBE ACROBAT READER 4 or ABOVE IS REQUIRED Click here to go to Adobe for the FREE download
	*SPECIAL MEMBER OFFER* Please be advised that LINAK are offering a great deal to members until further notice and they may purchase these actuators by contacting Mark Knowles.	LINAK Melbourne Head Office Hallam VIC 3803 Ph: +61 (03) 8796 9777 Fax: +61 (03) 8796 9778	Linak linear actuator part number "LA30" S30-3200-40150-225

	Aftermarket 3 point retractable SEAT BELTS APV.S Safety Products (Australian Made)	PART NUMBER K2255		available at RARE SPARES

	*Engine Codes* here - "PDF" download (51kb)

	Need a WIRING DIAGRAM? free downloads for all VW's at this Site
